Aluminum for Modern Trailer & Van Manufacturing
Aluminum is widely used in trailer and van manufacturing where vehicle weight, corrosion resistance and fabrication efficiency directly affect the finished body. From exterior side panels and roofs to doors, flooring and structural parts, different aluminum alloys and tempers can be selected according to the strength, forming and service requirements of each component.
Lower Vehicle Weight
Aluminum offers a high strength-to-weight ratio compared with many traditional body materials. Reducing the weight of panels, flooring and structural components helps manufacturers control overall vehicle weight and leaves more capacity for payload without compromising the required body performance.
Corrosion Resistance
Trailer and van bodies are routinely exposed to rain, moisture, road spray and de-icing salts. Aluminum naturally forms a protective oxide layer and selected alloys provide good corrosion resistance for exterior panels, roofs, floors and other components exposed to long-term outdoor service.
Fabrication Performance
Aluminum sheet, plate and coil can be processed using common vehicle-body manufacturing methods, including cutting, bending, forming, welding and riveting. Alloy and temper can be matched to the fabrication process, whether the application requires easily formed body panels or higher-strength welded components.
Long-Term Durability
Commercial trailers and vans are designed for repeated loading, long-distance transport and extended outdoor operation. Properly selected aluminum provides a practical balance of strength, corrosion resistance and maintainability, making it suitable for side walls, door skins, roofs, interior panels, flooring and structural components throughout the vehicle body.

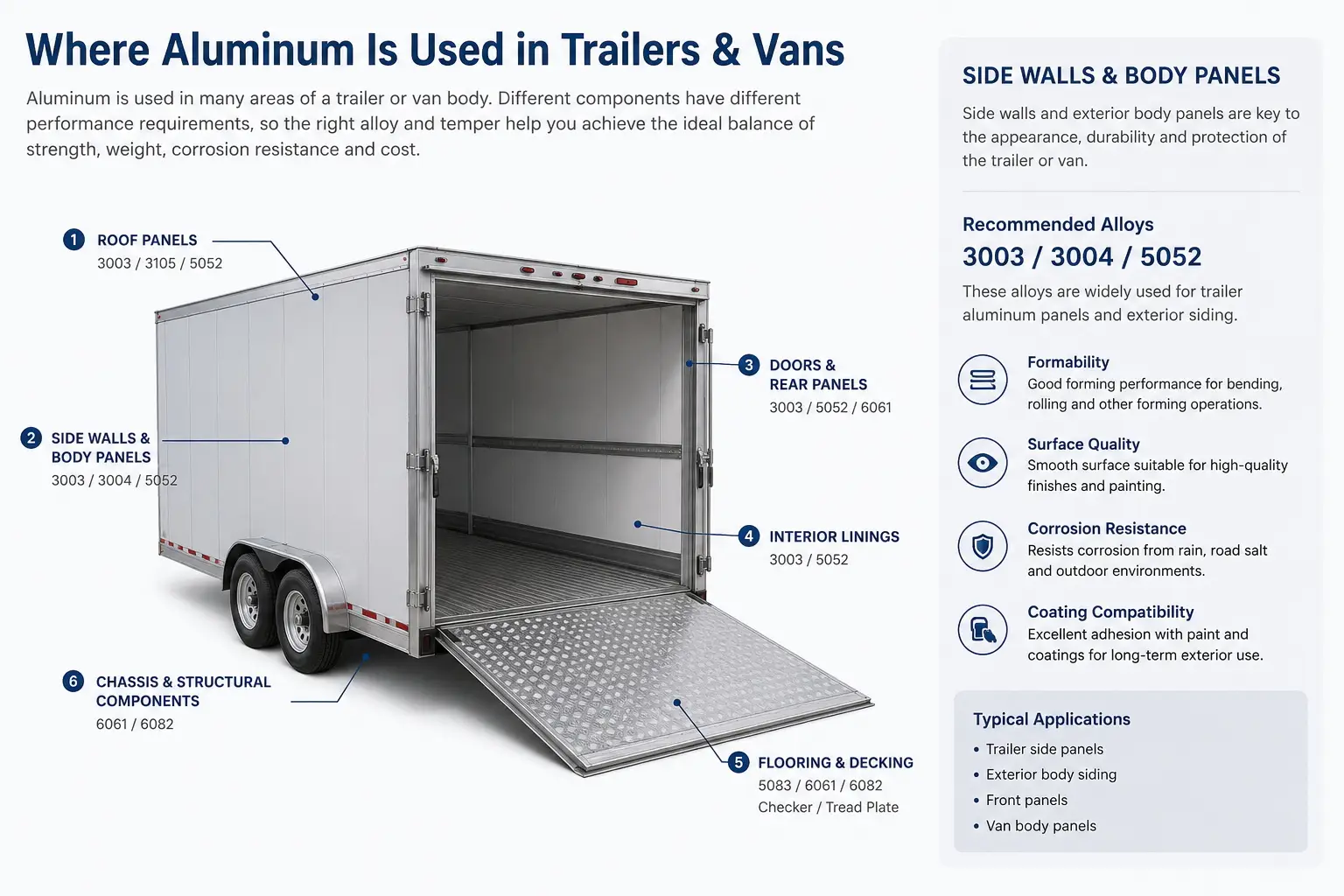

Where Aluminum Is Used in Trailers?
Aluminum is used throughout trailer and van bodies to reduce weight while meeting different requirements for strength, corrosion resistance and fabrication. Depending on the component, manufacturers can select suitable aluminum alloys, tempers and product forms for exterior panels, roofs, floors, doors, interior linings and structural parts.
Side Walls & Body Panels
Aluminum sheet and coil are widely used for trailer aluminum panels and exterior siding. Alloys such as 3003, 3004 and 5052 provide good formability, corrosion resistance and surface quality, making them suitable for side walls, front panels and exterior skins that require bending, coating or painting.
Roof Panels
Trailer and van roofs require lightweight materials with good formability and weather resistance. 3003, 3105 and 5052 aluminum sheet and coil are suitable for roof panels, offering good corrosion resistance and reliable forming performance for continuous or large-area roofing applications.
Flooring & Decking
Trailer floors and decks require higher strength, wear resistance and long-term durability. 5083, 6061 and 6082 aluminum plate can be used for load-bearing floor structures, while aluminum checker/tread plate provides additional slip resistance for floors, ramps and working surfaces.
Doors & Rear Panels
Aluminum is commonly used for rear doors, side doors and access panels where low weight, rigidity and corrosion resistance are important. Depending on the design and forming requirements, 3003, 5052 and 6061 can be used for door skins, panels and fabricated door components.
Chassis & Structural Components
For frames, supports, cross-members and other structural parts, 6061 and 6082 aluminum provide a good combination of strength, weldability and machinability. Alloy and temper should be selected according to the required load, joining method and structural design.
Interior Linings & Protective Panels
3003 and 5052 aluminum sheet are practical choices for interior wall linings, protective panels and cargo-area surfaces. Their corrosion resistance, formability and easy-to-clean surfaces make them suitable for cargo vans, enclosed trailers and refrigerated vehicle interiors.
Recommended Aluminum Alloys for Trailers & Vans
The right aluminum alloy depends on where the material is used and how the component is manufactured. Trailer side panels and roofs usually require good formability and surface quality, while floors, ramps and structural parts place more emphasis on strength, wear resistance and weldability. Shandong Union supplies 3003, 3004, 3105, 5052, 5083, 6061 and 6082 aluminum in different tempers and dimensions for trailer and van manufacturing.
| Trailer & Van Component | Recommended Alloy | Typical Product | Key Requirements |
| Side Walls & Body Panels | 3003 / 3004 / 5052 | Aluminum Sheet / Coil | Formability, surface quality, corrosion resistance |
| Exterior Skin & Siding | 3004 / 5052 | Aluminum Sheet / Coil | Smooth surface, coating compatibility, durability |
| Roof Panels | 3003 / 3105 / 5052 | Aluminum Sheet / Coil | Lightweight, formability, weather resistance |
| Flooring & Decking | 5083 / 6061 / 6082 | Aluminum Plate / Tread Plate | Strength, wear resistance, weldability |
| Doors & Rear Panels | 3003 / 5052 / 6061 | Aluminum Sheet / Plate | Formability, rigidity, corrosion resistance |
| Interior Linings | 3003 / 5052 | Aluminum Sheet | Formability, corrosion resistance, easy maintenance |
| Frames & Supports | 6061 / 6082 | Aluminum Plate | Strength, weldability, machinability |
| Ramps & Heavy-Duty Parts | 5083 / 6061 / 6082 | Aluminum Plate / Tread Plate | Load capacity, durability, wear resistance |
Which Aluminum Alloy Should You Choose?
- For trailer siding, body panels and exterior skins, 5052 is a common choice where higher strength and corrosion resistance are required, while 3003 and 3004 are suitable for components that place more emphasis on forming performance. For roofs and interior panels, 3003, 3105 and 5052 provide a practical balance of weight, formability and corrosion resistance.
- For trailer flooring, ramps and structural components, higher-strength alloys such as 5083, 6061 and 6082 are generally more suitable. The final grade and temper should be confirmed against the actual load, forming radius, welding method and operating environment.
Shandong Union can supply the alloy, temper, thickness, width, length and surface condition to match your production requirements. If you are unsure which aluminum grade to use, send us your trailer component drawing or material specification, and we can help you select a suitable aluminum product for the application.
Aluminum Alloys for Trailer & Van Applications
Different trailer components require different combinations of strength, formability, corrosion resistance and surface quality. Shandong Union supplies 3003, 5052, 5083, 6061 and 6082 aluminum in different tempers and dimensions, allowing manufacturers to match the material to body panels, roofs, flooring and structural parts.

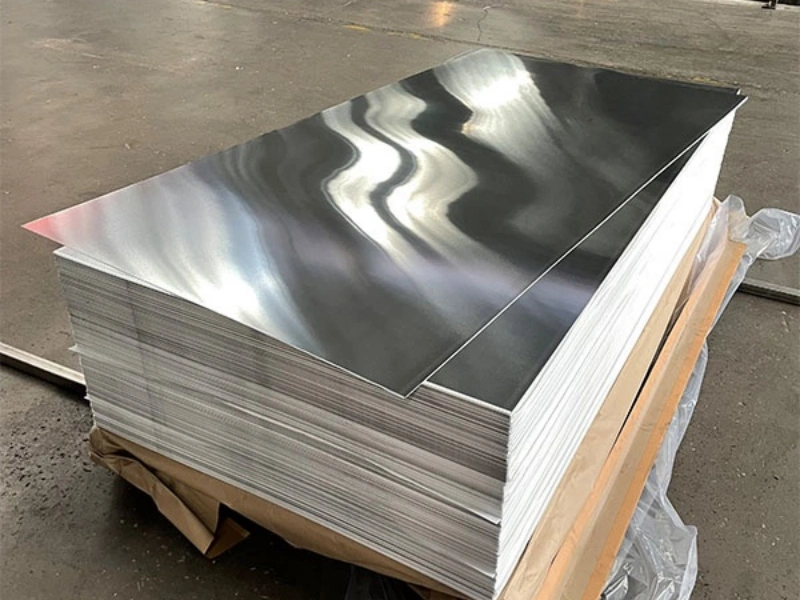

3003 Aluminum Sheet
3003 aluminum sheet is a practical choice for trailer roof panels, interior linings and non-structural body components. It offers good formability and corrosion resistance and is easy to bend and fabricate, making it suitable for large-area panels where moderate strength and cost control are important.

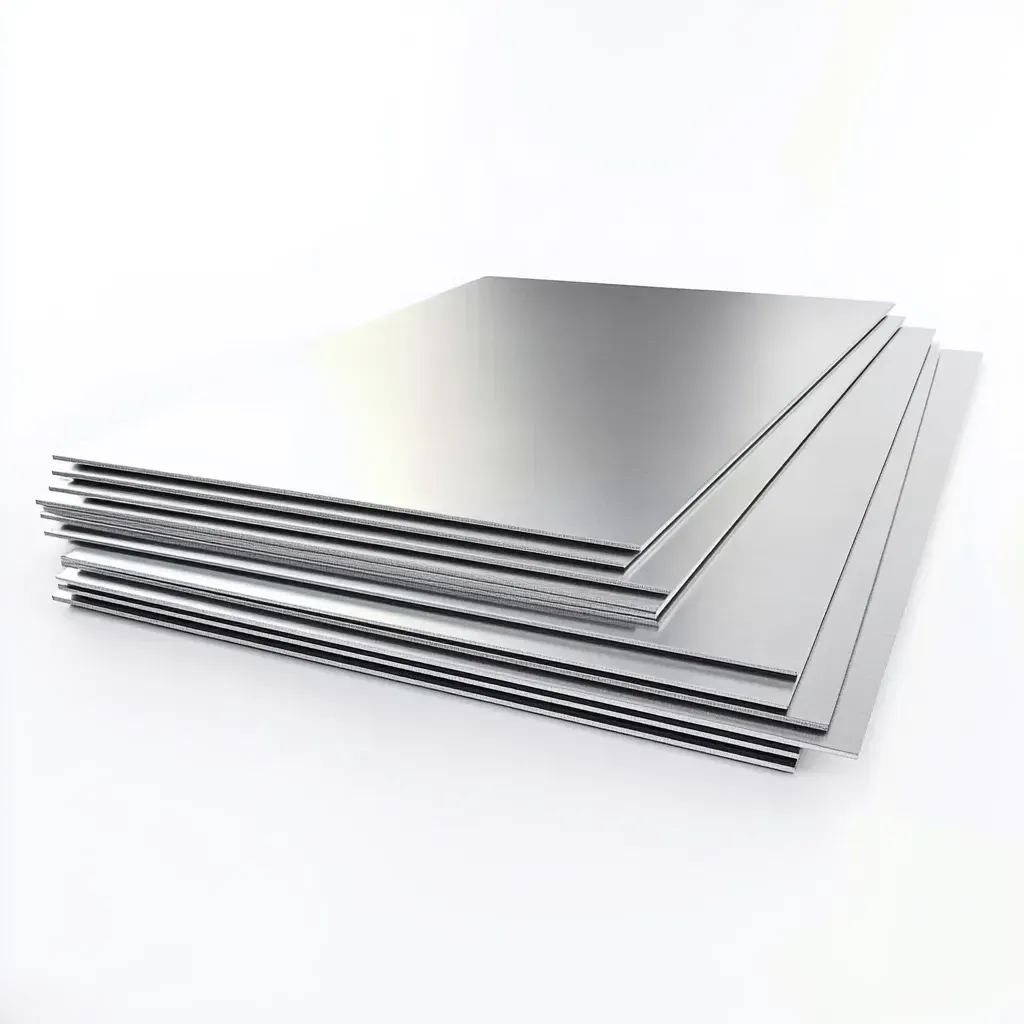

5052 Aluminum Sheet
5052 aluminum sheet is widely used for trailer siding, exterior body panels, doors, roofs and interior liners. Compared with 3003, it provides higher strength while maintaining good formability, weldability and corrosion resistance. Shandong Union can supply 5052 sheet and coil in different tempers, thicknesses and widths for trailer body production.

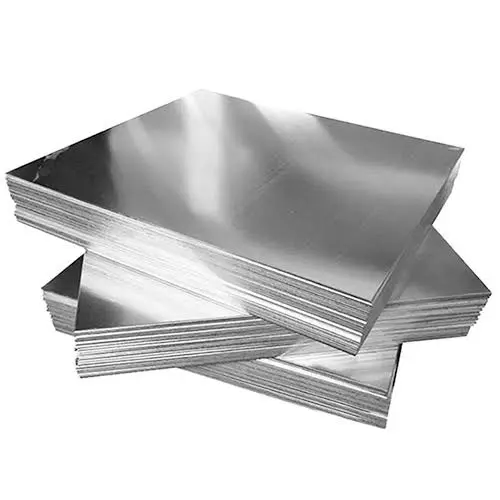

5083 Aluminum Plate
5083 aluminum plate is suited to heavy-duty trailer components where higher strength, weldability and corrosion resistance are required. It can be used for flooring, load-bearing panels and fabricated parts exposed to demanding operating conditions. We supply 5083 Aluminum Plate in custom thicknesses and dimensions for different trailer designs.

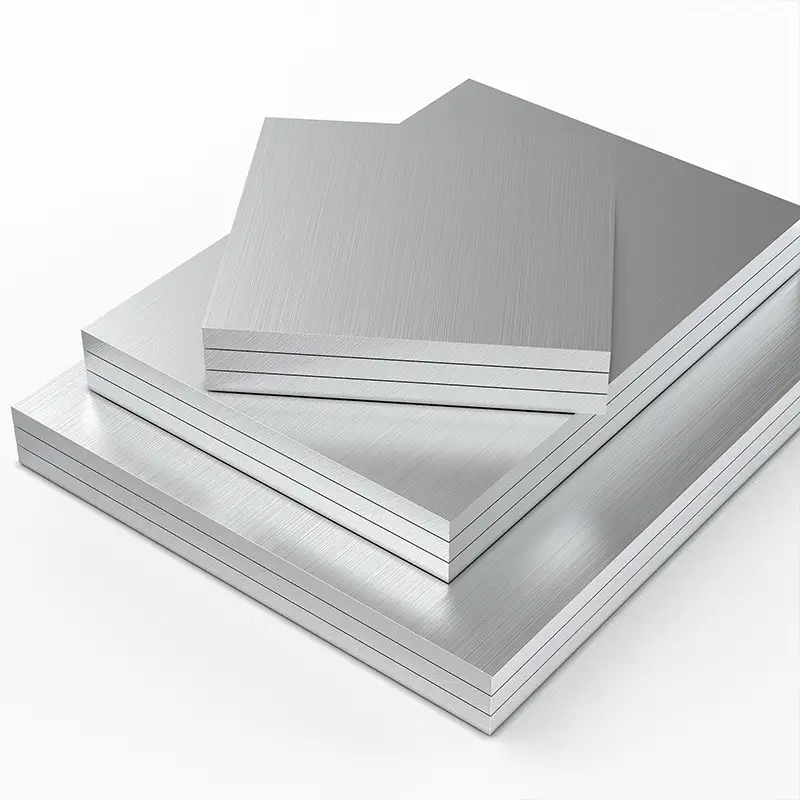

6061 Aluminum Plate
6061 aluminum plate combines good mechanical strength, machinability and weldability, making it suitable for trailer frames, supports, ramps, flooring and fabricated structural components. Our 6061 Aluminum Plate can be supplied in different tempers and cut sizes according to drawing and fabrication requirements.

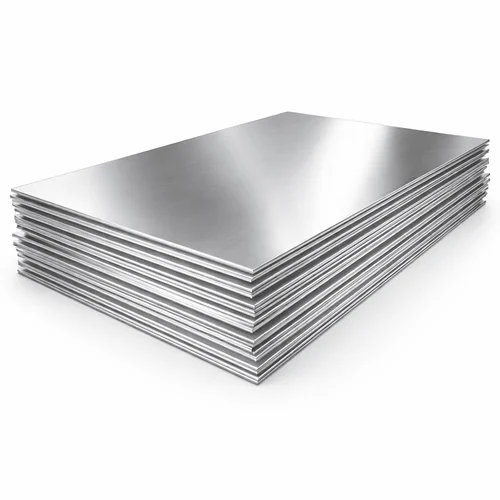

6082 Aluminum Plate
6082 aluminum plate is commonly selected for higher-strength structural and machined vehicle components. Its strength, machinability and welding performance make it suitable for supports, frames and other fabricated trailer parts. Shandong Union supplies 6082 plate with custom cutting and machining options to meet specific component dimensions and tolerances.
Contact Us
Need Aluminum for Your Trailer Project?
Tell us your trailer type, component, alloy, temper, thickness, dimensions and required quantity. Union Aluminium can help you select and supply aluminum sheet, plate or coil to match your manufacturing requirements.
Aluminum Solutions for Different Trailer & Van Types
Material requirements vary by trailer type, load condition and body design. Shandong Union supplies aluminum sheet, plate, coil and checker plate for cargo trailers, refrigerated trailers, flatbeds, utility trailers and commercial vans, with alloy and temper selected for each application.

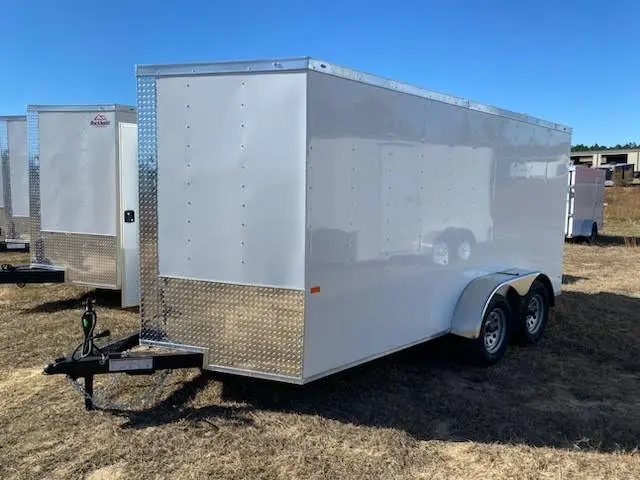

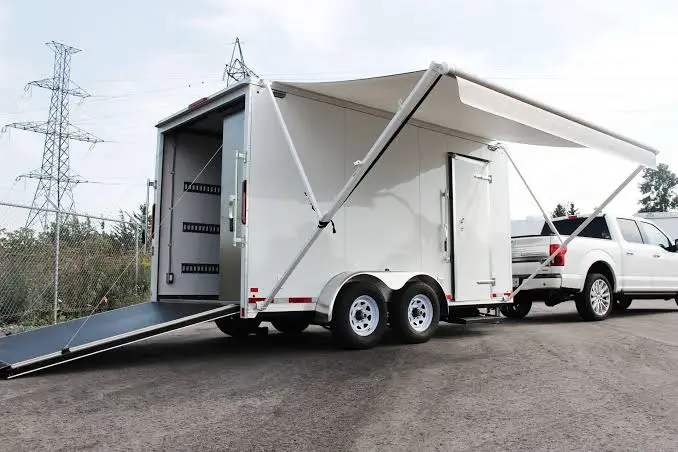

Cargo & Enclosed Trailers
Cargo and enclosed trailers use aluminum across side panels, exterior skins, roofs, doors, flooring and interior linings. We supply 3003 and 5052 aluminum sheet and coil for formed body panels, while 6061 and other higher-strength grades can be used where additional structural performance is required.

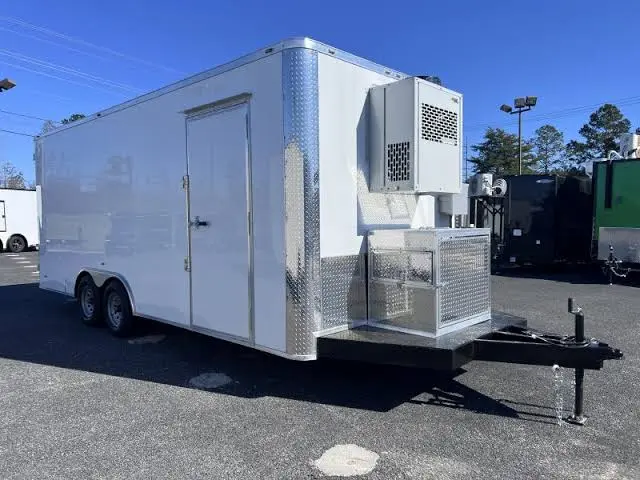

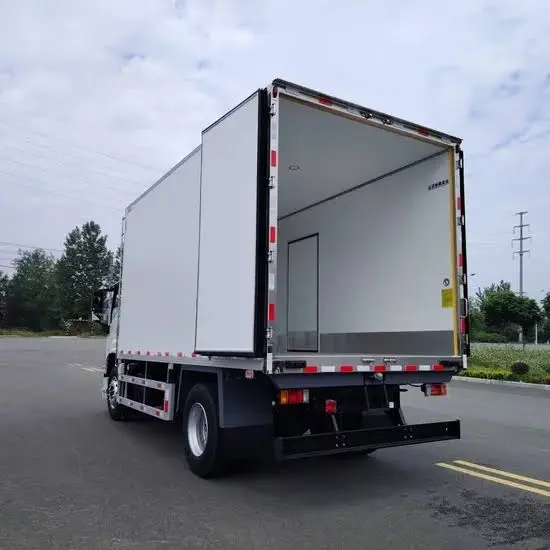

Refrigerated Trailers
Refrigerated trailer bodies require materials that perform reliably in humid, temperature-controlled environments. 5052 aluminum sheet is well suited to interior linings, wall panels and exterior skins due to its corrosion resistance and fabrication performance. Higher-strength aluminum plate can also be supplied for floors and structural areas.

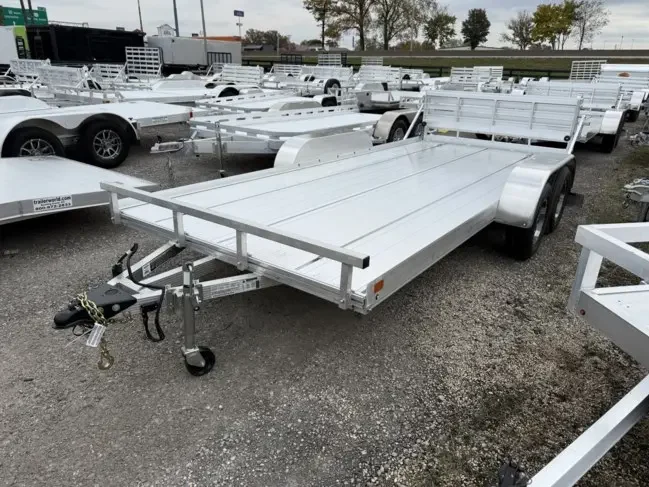

Flatbed & Utility Trailers
Flatbed and utility trailers place greater demands on load-bearing components, decks and ramps. We supply 5083, 6061 and 6082 aluminum plate, as well as checker/tread plate for surfaces requiring additional wear and slip resistance. Material thickness and temper can be matched to the required load and fabrication method.

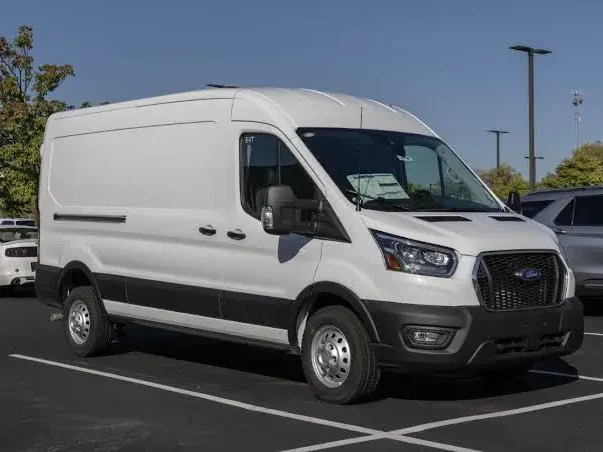

Commercial & Cargo Vans
Lightweight aluminum sheet helps reduce body weight while providing durable surfaces for daily commercial use. Shandong Union supplies aluminum for van body panels, doors, cargo-area linings and protective panels, with 3003 and 5052 commonly selected for components requiring good forming and corrosion resistance.

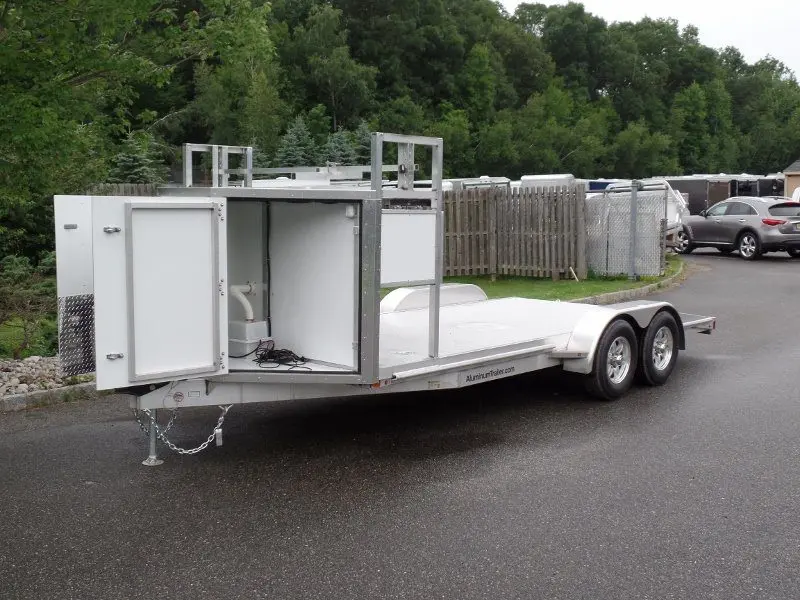

Specialty & Custom Trailers
Special-purpose trailers may require non-standard dimensions, higher-strength materials or specific fabrication tolerances. We can supply custom alloys, tempers, thicknesses, widths and cut-to-size aluminum according to component drawings, helping manufacturers match the material specification to the actual trailer structure and production process.
Aluminum Products We Supply for Trailer Manufacturing
Shandong Union supplies aluminum sheet, plate, coil and checker plate for trailer and van production. Available in multiple alloys, tempers, thicknesses and dimensions, our materials can be matched to body panels, roofs, floors, doors and structural components, with custom processing available for specific production requirements.

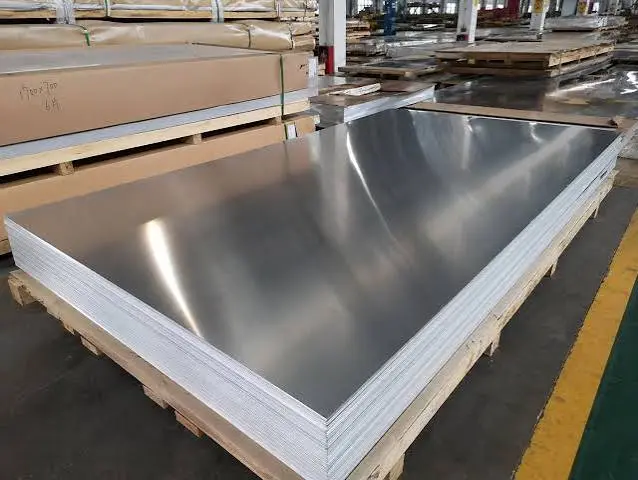

Aluminum Sheet & Plate
Aluminum sheet and plate are available for trailer body panels, doors, flooring, ramps and structural components. We supply 3003, 5052, 5083, 6061, 6082 and other grades in standard or custom dimensions.

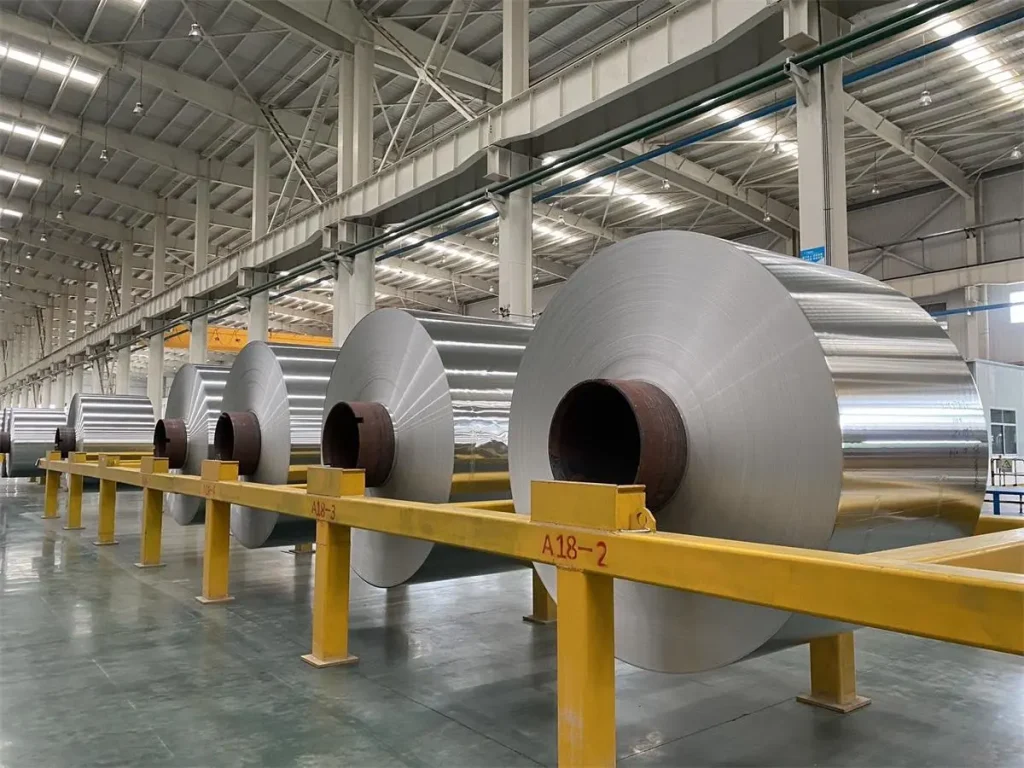

Aluminum Coil
Aluminum coil provides an efficient material format for trailer roofing, siding and continuous body panel production. Coil width, thickness, temper and surface condition can be specified to suit forming, cutting and coating processes.

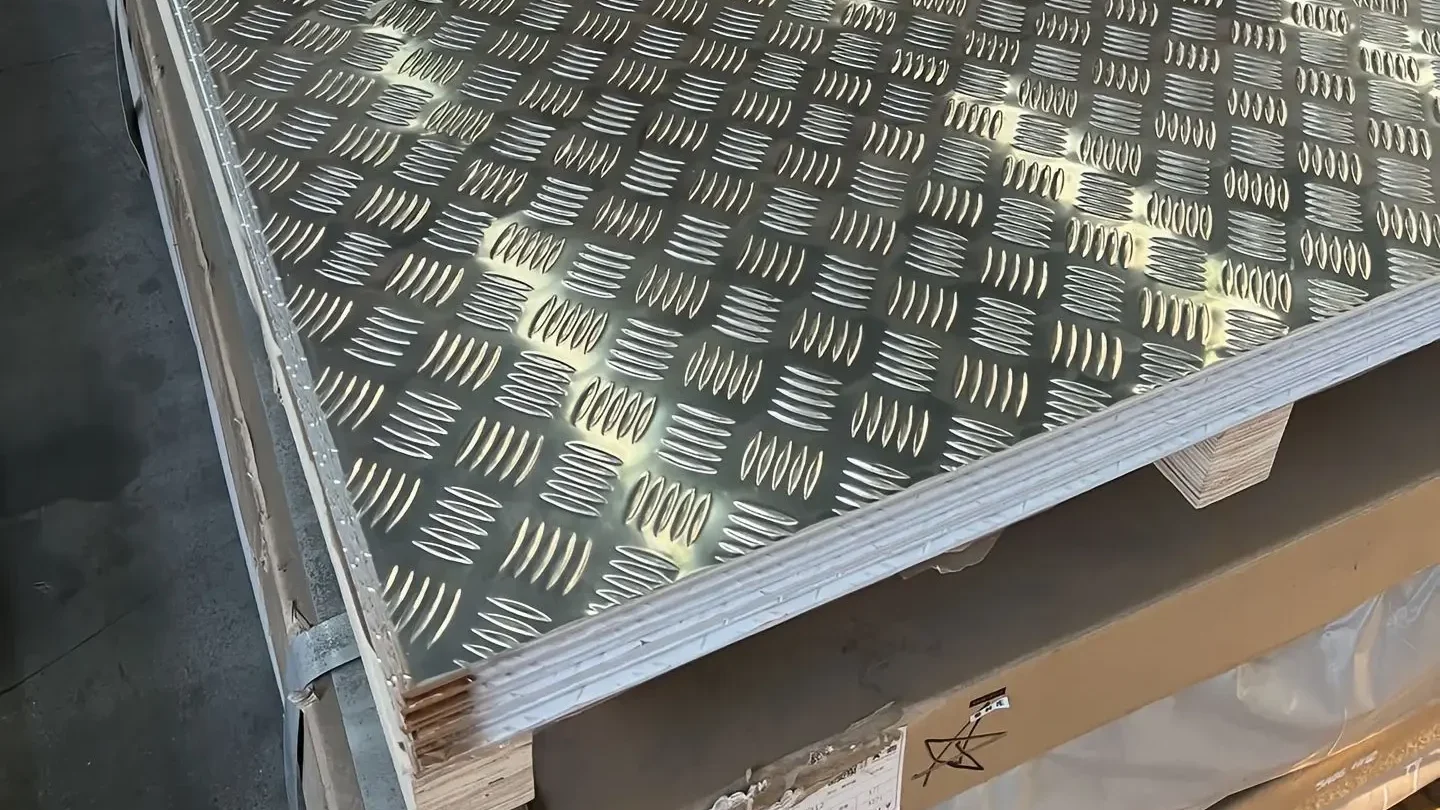

Aluminum Checker Plate
Aluminum checker/tread plate is used for trailer floors, decks, steps and ramps where durability and slip resistance are required. Different patterns, alloys and thicknesses are available for light-duty and heavy-duty applications.
Custom-Cut Aluminum

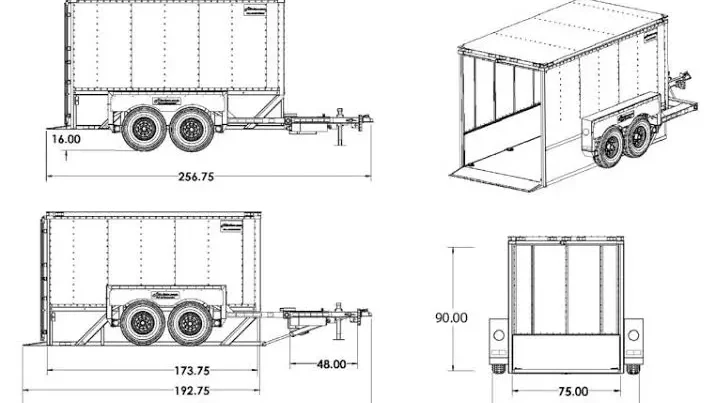

We provide cut-to-size aluminum plate and sheet according to trailer component drawings and production specifications. Custom length, width, sawing and CNC processing options help reduce downstream material preparation and simplify component fabrication.
Custom Aluminum Supply for Trailer Manufacturers
Trailer manufacturers often require aluminum to match specific body designs, forming processes and production lines. Shandong Union supplies aluminum sheet, plate, coil and tread plate with customized alloy, temper, thickness, width, length and surface condition. Cut-to-size and further processing services are also available based on your drawings or material specifications.
| Custom Option | Supply Capability |
| Alloy | 3003, 3004, 3105, 5052, 5083, 6061, 6082 and other grades |
| Temper | Selected according to alloy, forming and strength requirements |
| Thickness | Standard and custom thicknesses |
| Width & Length | Standard sizes or customized to production requirements |
| Surface Finish | Mill finish, coated, anodized and other finishes |
| Surface Protection | PVC film, paper interleaving and protective packaging |
| Processing | Cutting, sawing and CNC machining |
| Product Form | Sheet, plate, coil and checker/tread plate |
| Standards | ASTM, EN and customer-specified requirements |
For custom trailer projects, send us your alloy, temper, dimensions, application, drawings and required quantity. Our team can help confirm the material specification and supply aluminum in a format suitable for your production process.
Contact Us
Custom Aluminum to Your Exact Specifications
From custom thicknesses and widths to cut-to-size sheets and plates, Shandong Union supplies aluminum tailored to your trailer production requirements. Tell us the alloy, temper, dimensions, quantity and processing needs, and we’ll prepare a supply solution for your project.
How to Choose Aluminum for Your Trailer or Van?
Choosing aluminum for a trailer or van starts with the component design, required strength and fabrication method. Alloy, temper and thickness should be confirmed together rather than selected by grade alone. For most projects, we recommend checking the following points before ordering.
Define the Component
Start with where the aluminum will be used. Side walls, roofs and interior panels generally require good formability and surface quality, while floors, ramps, frames and supports need higher strength and wear resistance.
Determine Strength Requirements
Match the alloy and temper to the expected load. 3003 and 5052 are commonly considered for formed panels and body skins, while higher-strength grades such as 5083, 6061 and 6082 are better suited to flooring and structural components.
Consider Forming & Welding
If the part requires bending, forming, welding, riveting or machining, confirm these processes before selecting the temper. The correct material condition helps avoid cracking during forming and provides more consistent fabrication performance.
Evaluate the Operating Environment
Trailers operating in coastal areas, refrigerated service, high-humidity conditions or regions using road salt require greater attention to corrosion resistance. The alloy and surface finish should be selected for the actual service environment.
Confirm Thickness & Dimensions
Thickness should be based on the load, panel span, support structure and fabrication method. Width and length should also match your production layout to reduce cutting, material waste and additional handling.
Not sure which aluminum grade fits your trailer design? Send Shandong Union your component drawing, required alloy, thickness, dimensions and annual demand. We can recommend a suitable material and supply specification for your application.
Why Trailer Manufacturers Work with Shandong Union?
Trailer and van manufacturers need more than the right aluminum grade. Consistent material quality, dimensional control, processing capability and reliable volume supply are equally important. Shandong Union supports both standard and custom requirements, from material selection through processing and export delivery.
Wide Alloy Range
We supply 3003, 3004, 3105, 5052, 5083, 6061, 6082 and other aluminum grades for body panels, roofs, flooring, doors, ramps and structural components.
Sheet, Plate & Coil Supply
Aluminum sheet, plate, coil and checker/tread plate are available from one supplier, helping trailer manufacturers source materials for different vehicle components under consistent supply requirements.
Custom Dimensions
Thickness, width, length and temper can be supplied according to your drawings and production requirements. Custom sizing helps reduce material waste and downstream preparation.
Processing Support
We provide cutting, sawing, CNC machining and surface protection options for projects requiring material prepared closer to the final component dimensions.
Stable Production Capacity
With 12 production lines and an annual production capacity of up to 500,000 tons, Shandong Union can support recurring orders, OEM production programs and volume requirements with stable material supply.
Export Supply Experience
We serve international customers with material inspection, protective packaging and export preparation based on product type and shipping requirements, supporting reliable delivery for overseas trailer and van manufacturing projects.
FAQ
What type of aluminum is used for trailers?
Start with product type, quantity, packaging needs, delivery timeline and any customization requirements.
Can the configuration be customized?
Common trailer aluminum alloys include 3003, 3004, 5052, 5083, 6061 and 6082. The right grade depends on the component. 3003 and 5052 are commonly used for body panels and roofs, while 5083, 6061 and 6082 are better suited to flooring, ramps and structural parts requiring higher strength.
What is the best aluminum sheet for trailer siding?
5052 aluminum sheet is a common choice for trailer siding and exterior body panels because it combines good strength, formability, weldability and corrosion resistance. 3003 and 3004 can also be considered where forming performance and cost are priorities. The final alloy and temper should match the panel design and fabrication process.
Is 5052 aluminum good for trailers?
Yes. 5052 aluminum is widely suited to trailer side panels, exterior skins, doors, roofs and interior linings. It provides higher strength than 3003 while retaining good forming and welding performance. Its corrosion resistance also makes it suitable for trailer bodies exposed to rain, road spray and long-term outdoor service.
What aluminum is used for trailer flooring?
Trailer flooring typically requires higher strength and wear resistance than body panels. 5083, 6061 and 6082 aluminum plate can be considered depending on the load and floor structure. Aluminum checker or tread plate is also commonly used for floors, decks, steps and ramps where additional grip and surface durability are required.
What thickness aluminum sheet is used for trailer walls?
There is no single standard thickness for all trailer walls. The required thickness depends on the trailer type, panel size, support spacing, alloy, temper and structural design. Exterior skins and interior linings may use different gauges. Shandong Union can supply custom thicknesses based on your drawing or existing material specification.
What is the difference between 5052 and 6061 aluminum for trailers?
5052 aluminum offers good formability and corrosion resistance, making it suitable for siding, body panels, doors and linings. 6061 aluminum provides higher structural strength and good machinability, so it is more commonly considered for frames, supports, ramps and fabricated structural components. Selection should be based on the actual part rather than strength alone.
Can aluminum sheets be customized for van body manufacturing?
Yes. Shandong Union can supply aluminum sheet and plate with customized alloy, temper, thickness, width and length for van body production. Cutting, sawing, CNC machining and surface protection options are also available for projects requiring material prepared according to component drawings or specific manufacturing requirements.
How do I choose aluminum for a refrigerated trailer?
Start with the component and operating environment. Interior linings and body panels require good corrosion resistance and formability, making 5052 aluminum a practical option for many applications. Floors and structural parts may require higher-strength grades. Also consider temperature, humidity, cleaning conditions, load, joining method and required surface finish before specifying the material.
