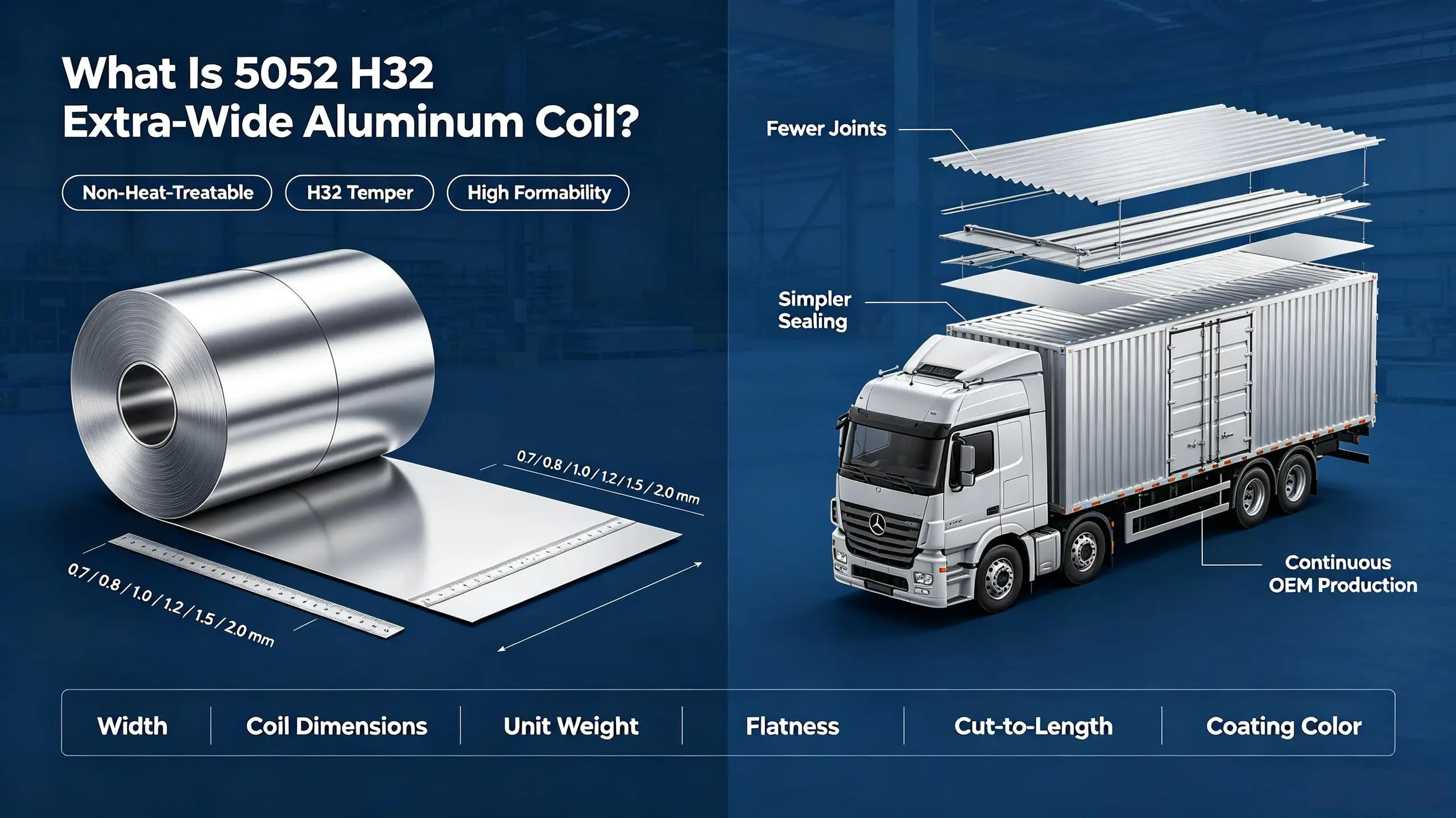

What Is 5052 H32 Aluminum Coil?
5052 H32 aluminum coil is a non-heat-treatable 5xxx series Al-Mg alloy supplied in a strain-hardened and stabilized temper. It combines higher panel strength than common 3xxx body sheet with the bending, profiling and roll-forming performance required for commercial vehicle production.
Shandong Union supplies 5052 H32 wide coil for truck bodies, trailer roofs, refrigerated vehicles, insulated panels and other large-format enclosures. Extra-wide material allows larger roof and side-wall sections to be formed with fewer joints, helping simplify fabrication, sealing and continuous OEM production.
Regular vehicle-body thicknesses include 0.7, 0.8, 1.0, 1.2, 1.5 and 2.0 mm. Width, coil dimensions, unit weight, flatness, cut-to-length size and coating color can be supplied according to confirmed production requirements.
Specifications
Shandong Union supplies mill-finish and color-coated 5052 Aluminum Coiland sheet for truck and trailer body fabrication. Non-standard width, flatness, cut length and coating requirements can be specified for production orders.
| Item | Specification |
| Alloy | 5052 |
| Main Temper | H32 |
| Product Form | Extra-Wide Coil / Flat Sheet / Cut-to-Length Sheet |
| Typical Thickness | 0.7 / 0.8 / 1.0 / 1.2 / 1.5 / 2.0 mm |
| Width | Custom Extra-Wide |
| Surface | Mill Finish / Color Coated |
| Coating Options | Polyester / PVDF |
| Processing | Slitting / Cut-to-Length / Custom Sheet Size |
| Custom Options | Width / Flatness / Length / Coating Color |
| Main Use | Trailer Roofs / Truck Bodies / Refrigerated Vehicle Panels |
5052 H32 Material & Temper
5052 is an Al-Mg alloy with magnesium as its principal alloying addition. The H32 temper is strain hardened and stabilized to provide a practical balance of strength and formability for vehicle-body panels.
For truck and trailer manufacturing, H32 is suited to components that must retain their shape after forming and withstand road vibration, cargo contact and outdoor service. It supports bending, profiling, rib forming and edge forming for large roof and side-panel production.
Chemical composition and certified mechanical properties are controlled according to the applicable material standard and order specification. For engineering approval, request the Mill Test Certificate corresponding to the required thickness and width.
Custom Coil Supply
| Supply Option | Available Service |
| Extra-Wide Coil | Wide material for one-piece or reduced-joint roof and body panels |
| Cut-to-Length Sheet | Flat sheet cut to specified dimensions for downstream fabrication |
| Color-Coated Material | Polyester or PVDF coating with project colors confirmed against the order |
| Thickness & Flatness | Regular 0.7–2.0 mm range and non-standard requirements subject to confirmation |
| Production-Line Matching | Coil width, ID/OD, unit weight and processing specification matched to customer equipment |
Contact Us
Need a Coil Specification for Your Vehicle Body Line?
Send us the required thickness, width, coil ID/OD, unit weight, forming process, coating requirement and order quantity. Our team will confirm a suitable 5052 H32 supply specification.
Response within one business day
Why Choose 5052 H32 for Truck & Trailer Bodies?
Commercial vehicle panels must remain workable during fabrication while resisting repeated loading, road vibration, moisture and daily cargo handling. 5052 H32 provides a useful combination of panel strength, formability and corrosion resistance for these operating conditions.
Higher Panel Strength
The Al-Mg alloy provides higher structural strength than common 3xxx body sheet, supporting side skins and enclosure panels exposed to cargo contact and regular handling.
Stable Forming
H32 retains the formability required for bending, profiling, rib forming and edge forming without moving to an excessively hard temper.
Corrosion Resistance
5052 performs well in wet, humid and coastal environments, supporting long-term outdoor use for truck and trailer bodies.
Improved Dent Resistance
Higher panel strength helps resist local dents and deformation caused by cargo contact, loading operations and normal service loads.
Extra-Wide 5052 Coil for Reduced-Joint Trailer Roofs
Roof joints are a practical concern in box-truck, trailer and refrigerated-body production. When the required roof width can be covered by one continuous coil width, the roof skin can be formed with fewer transverse or longitudinal joints.
01 Fewer Roof Joints
A wider continuous strip reduces the need to join multiple narrow sheets across the roof structure.
02 Simplified Roof Sealing
Fewer joints mean fewer interfaces requiring sealing, helping simplify waterproofing and reduce potential leakage points.
03 Large-Format Forming
5052 H32 wide coil supports bending, profiling, rib forming and edge forming used in common vehicle-roof production.
04 Efficient Body Production
Continuous wide material reduces sheet positioning, joining and seam-treatment operations for batch and long-term OEM supply.
5052 Aluminum for Trailer Roofs & Side Panels
5052 aluminum is a reliable material for trailer roofs and side panels, offering an excellent balance of strength, low weight, and corrosion resistance. It performs well in rain, humidity, and road-salt conditions, helping extend the trailer’s service life while reducing overall vehicle weight. The alloy is also easy to bend, form, and weld, making it suitable for a wide range of trailer designs. Available in mill finish, embossed, or coated surfaces, 5052 aluminum is widely used for cargo trailers, enclosed trailers, and specialty vehicles.

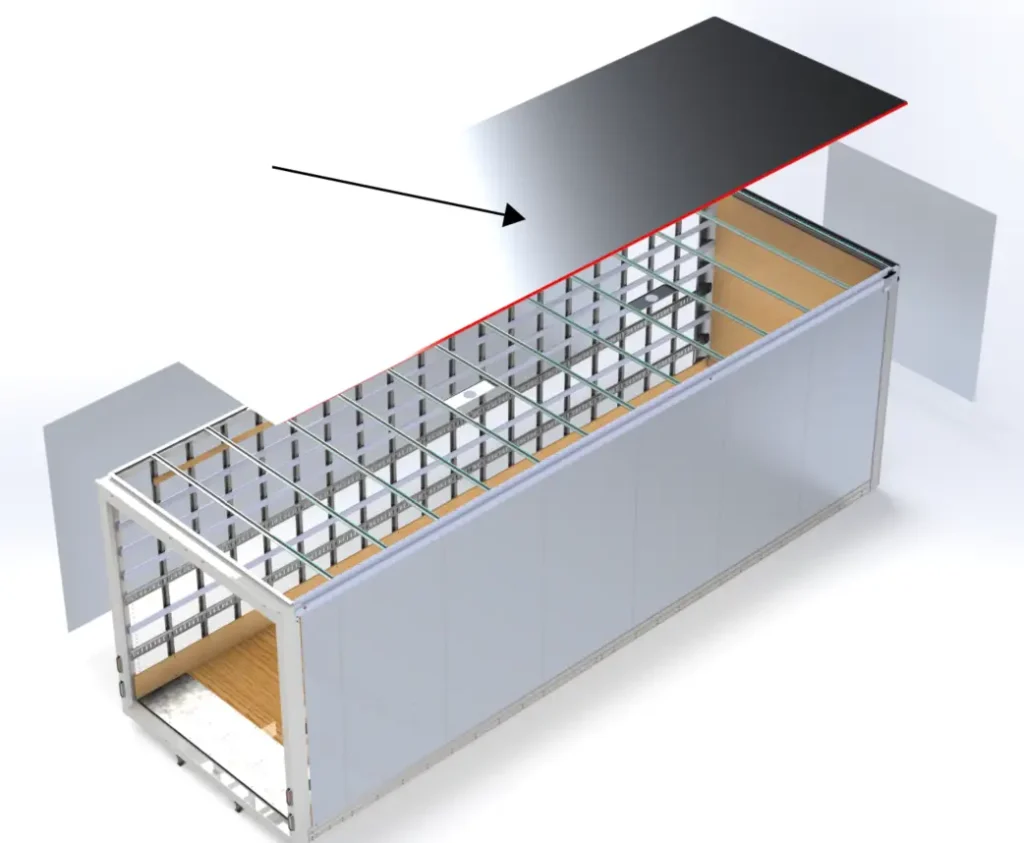

Extra-Wide 5052 H32 Coil for Trailer Roofs
Extra-wide 5052 H32 coil is intended for box trucks, refrigerated trucks and insulated vehicle roofs where large continuous sections are preferred. It supports profiling and forming while reducing the number of roof joints.

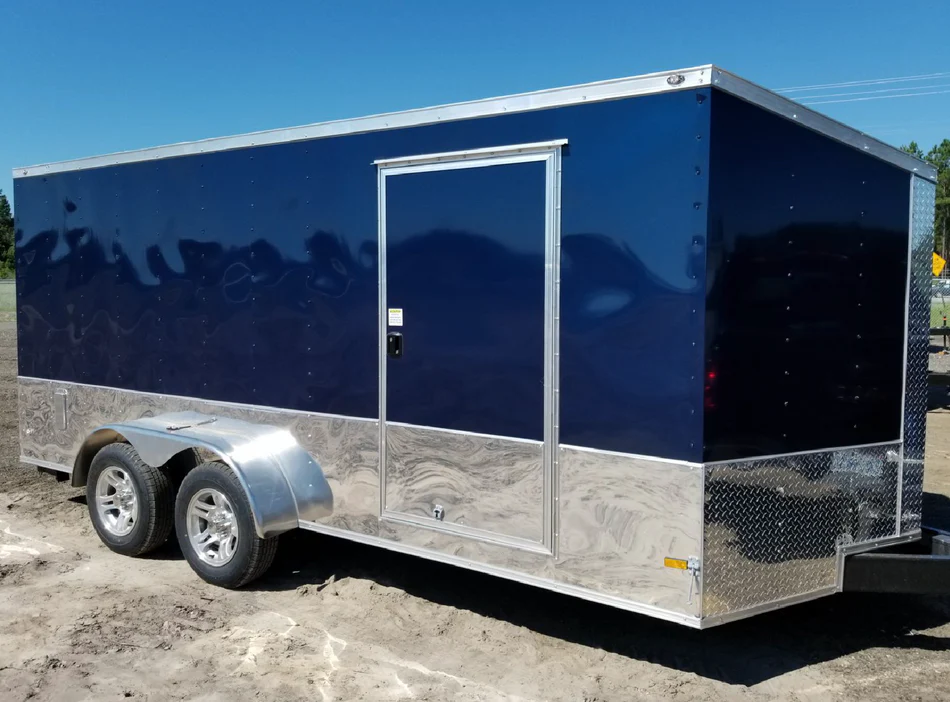

Color-Coated 5052 H32 Sheet for Side Panels
For exterior side walls, 5052 H32 can be supplied with polyester or PVDF coating according to project requirements. The high-strength substrate supports body-panel rigidity, while the coated surface provides the specified appearance and weather protection.
5052 H32 vs. 3004 Aluminum for Trailer Bodies
Both alloys are used for commercial vehicle panels, but they serve different performance and cost priorities. Selection should consider strength, formability, dent resistance, service environment and the finished panel design.
| Selection Factor | 3004 | 5052 H32 |
| Alloy System | Al-Mn | Al-Mg |
| Strength | Moderate | Higher |
| Formability | Very Good | Good |
| Dent Resistance | Suitable for general body panels | Better suited to higher-load panels |
| Corrosion Resistance | Good | Very Good |
| Formed Roof Panels | Suitable | Suitable |
| Heavy-Duty Body Panels | General Use | Preferred |
| Material Cost | Lower | Higher |
Choose 3004 for cost-sensitive body panels where very good formability and general outdoor performance are sufficient. Choose 5052 H32 when higher panel strength, dent resistance and durability are more important, especially for refrigerated, logistics and higher-duty vehicle bodies.
Applications
5052 H32 wide coil is mainly used for commercial vehicle bodies where large panel size, forming stability, corrosion resistance and reduced body weight are required.

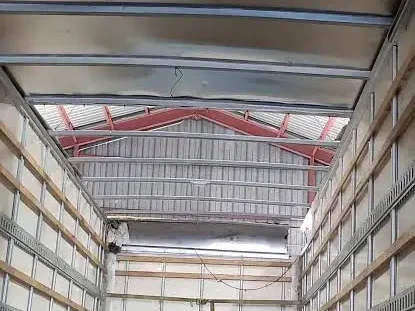

Box Truck Roofs
Extra-wide roof skin for box trucks and logistics vehicles, reducing joints across large roof sections.

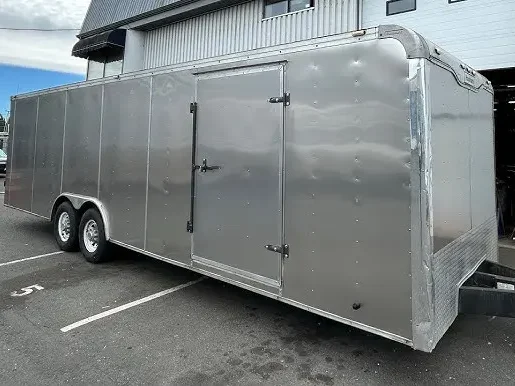

Truck & Trailer Side Panels
High-strength body skin for side walls exposed to cargo handling and outdoor service.

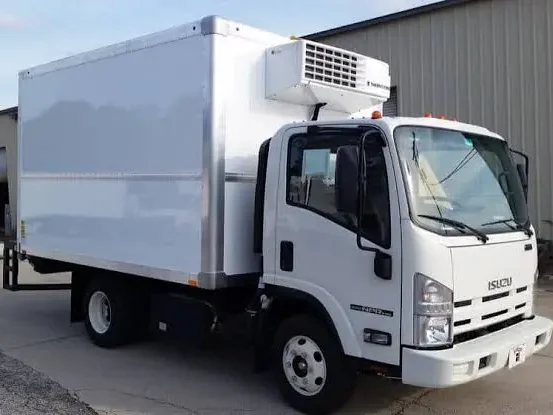

Refrigerated Truck Bodies
Roof and exterior panel material requiring corrosion resistance and stable panel geometry.

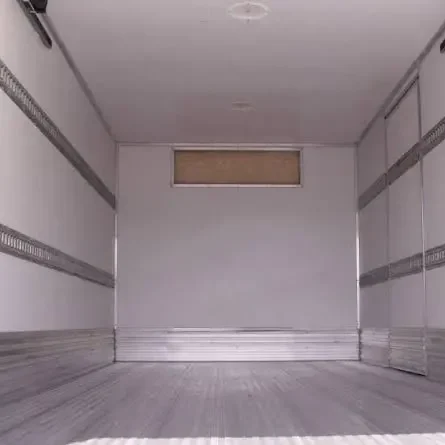

Insulated Vehicle Panels
Exterior skins and enclosure panels used with insulated body structures.

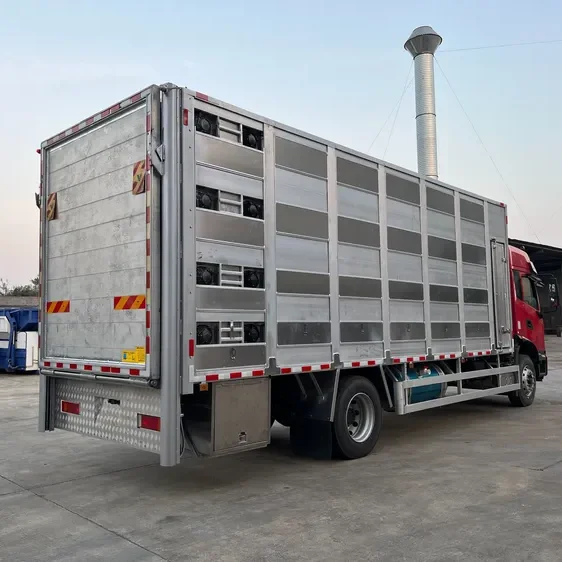

Special-Purpose Vehicles
Large-format exterior panels for modified vehicles and engineering bodies.

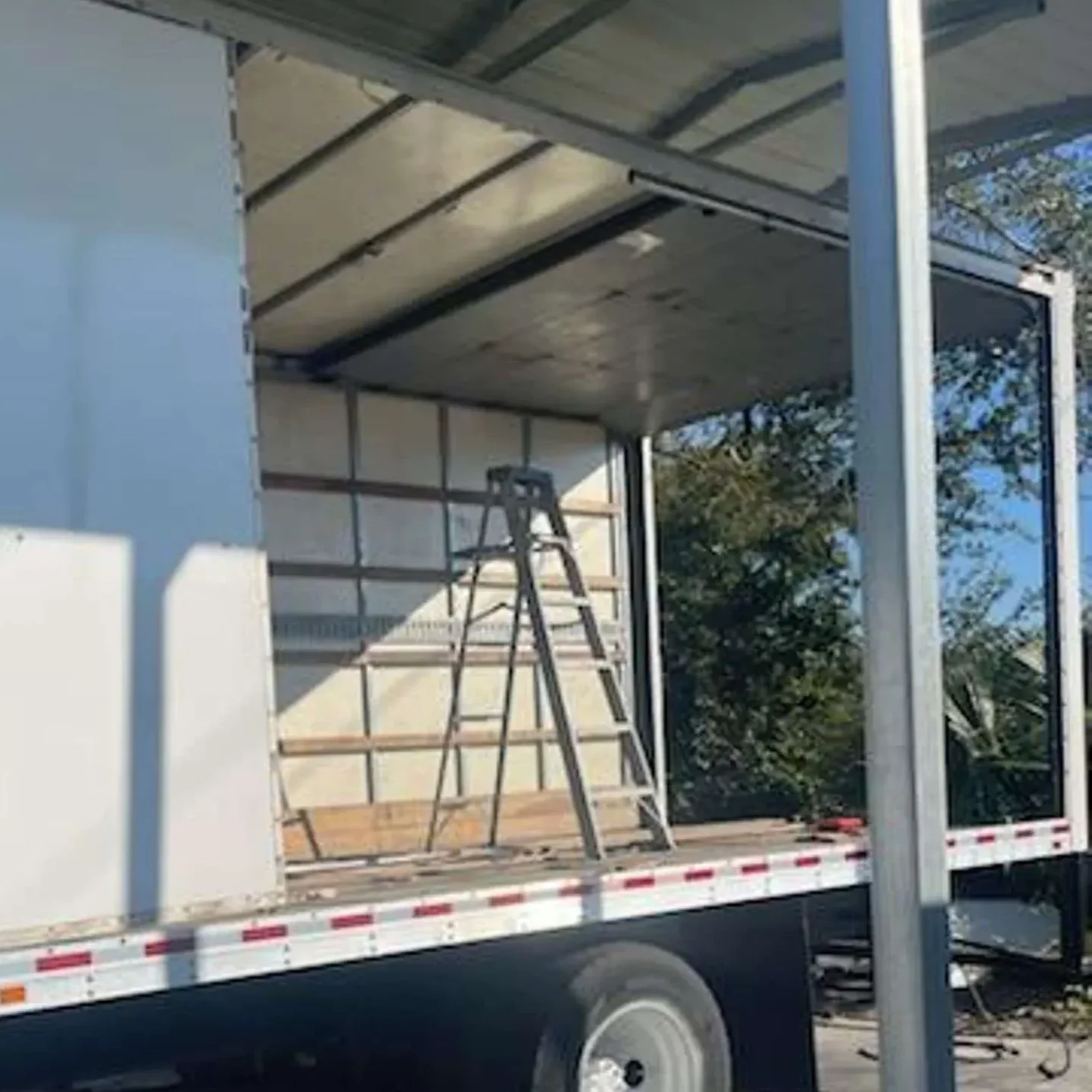

Truck Body Refurbishment
Material for roof replacement, side-wall renewal and exterior color changes.
Quality Control for 5052 H32 Wide Coil
As a 5052 aluminum coil supplier & mamufacturer, Shandong Union applies batch-based quality control throughout the production of 5052 H32 wide coil. Incoming raw materials, rolling parameters and H32 temper are controlled to the specified requirements. Before shipment, each batch is inspected for chemical composition, tensile properties, thickness and width tolerance, flatness, surface condition and edge quality. Coil dimensions and packaging are also checked against the purchase specification. MTC and inspection records can be supplied with the order for material traceability.
- Alloy & Temper Verification: Material grade and H32 condition are checked against the confirmed order.
- Mechanical Properties: Required properties are verified according to the applicable specification and purchase requirements.
- Thickness & Width: Coil dimensions are checked for consistent downstream forming and panel production.
- Flatness: Large-format material is controlled to reduce visible waviness during fabrication.
- Surface Quality: Mill-finish and coated surfaces are inspected for defects affecting appearance or further processing.
- Documentation: Material certificates and relevant inspection reports can be supplied according to order requirements.
Coil Packaging & Delivery
5052 H32 wide coil and cut sheet are packed according to product form and export shipment requirements. Packaging is arranged to protect the surface, coil edges and material identification during handling and transportation.
- Surface Protection: Protection is selected according to mill-finish or coated surface requirements.
- Coil Protection: Wide coils are secured for handling and transport to reduce movement and edge damage.
- Export Packing: Packing is arranged for international container shipment according to coil or sheet dimensions.
- Product Marking: Packages identify alloy, temper, dimensions and order information for receiving and material control.
FAQ
What is 5052 H32 aluminum coil?
5052 H32 aluminum coil is a 5xxx series Al-Mg alloy supplied in a strain-hardened and stabilized temper. It combines higher strength than common 3xxx body sheet with useful bending and forming performance for roofs, side panels and other large-format vehicle-body components.
Why is 5052 H32 used for truck and trailer bodies?
5052 H32 combines panel strength, dent resistance, corrosion resistance and formability. It can withstand regular cargo contact and road vibration while remaining suitable for bending, profiling and rib forming.
What thickness is commonly used for trailer roofs?
The required thickness depends on roof structure, span, forming profile and design load. Common supplied thicknesses for Shandong Union 5052 H32 truck-body material include 0.7, 0.8, 1.0, 1.2, 1.5 and 2.0 mm.
Why use extra-wide aluminum coil for trailer roofs?
Extra-wide coil allows larger roof sections to be produced with fewer panel joints. This reduces sheet splicing and the number of interfaces requiring sealing while simplifying large-format roof fabrication.
What is the difference between 5052 H32 and 3004 aluminum?
5052 is an Al-Mg alloy and is generally selected where higher panel strength, dent resistance and durability are required. 3004 is an Al-Mn alloy and remains practical for general-purpose panels where very good formability and lower material cost have greater priority.
Can 5052 H32 aluminum coil be roll formed or bent?
Yes. 5052 H32 is suitable for common truck-body processes including bending, profiling, rib forming and edge forming. Actual bend radius and forming limits should be confirmed according to material thickness and component geometry.
Can 5052 aluminum be color coated for truck body panels?
Yes. Shandong Union can supply color-coated 5052 H32 material with polyester or PVDF coating. Color and coating specifications should be confirmed according to appearance, weather exposure and service conditions.
Can extra-wide 5052 coil be customized to my production line?
Yes. Non-standard width, special flatness, cut-to-length dimensions and custom coating colors can be supplied. Send the required thickness, width, coil ID/OD, unit weight, forming process and order quantity for production confirmation.
